APEX-P100
基于 Intel 架构的 AI 系统，搭载 NVIDIA RTX 5000 Ada 加速卡
- MXM Type B，配备 9,728个 CUDA 核心、304个 Tensor 核心和 76个 RT核心
- 搭载 32GB DDR5 内存和 512GB NVMe SSD
接口配置
- 1电源按钮
- 2COM端口
- 3LAN端口
- 4DIO
- 5HDD
- 6USB 3.2 Gen 2 x1 (10Gbps, Type-A)
- 7USB 3.2 Gen 2 x2 (20Gbps, Type-C)
- 8DC 输入 24V
- 9DP++ 1.4（最高支持4K@60Hz）
- 10CAN总线
- 11音频输出
- 12带外管理（Out-of-band, OOB）
- 13USB 2.0
- 14麦克风输入
为卓越性能而打造
APEX-P100 擅长处理复杂任务，如医学影像分析、工厂 AOI、自主移动机器人和自动驾驶。
顶尖计算能力
APEX-P100 采用 NVIDIA 最新 Ada Lovelace 架构 RTX 5000 加速卡，专为边缘端 AI 推理的严苛需求而设计。

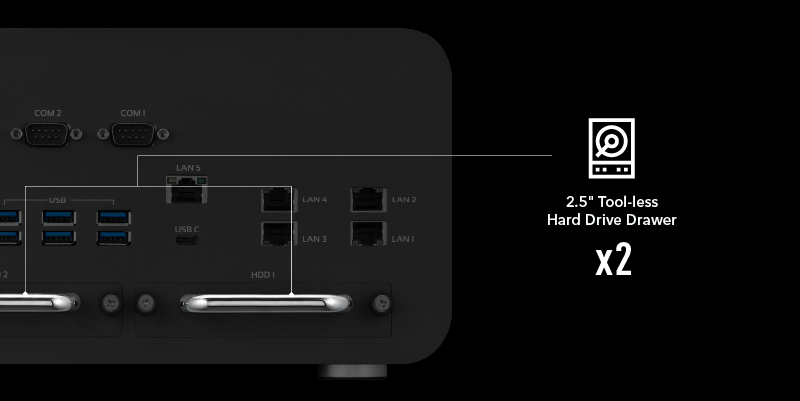

友好的结构设计
系统正面独家设计两个 2.5 英寸固态硬盘抽拉盘，无需额外拆装工具，即可轻松更换存储设备。

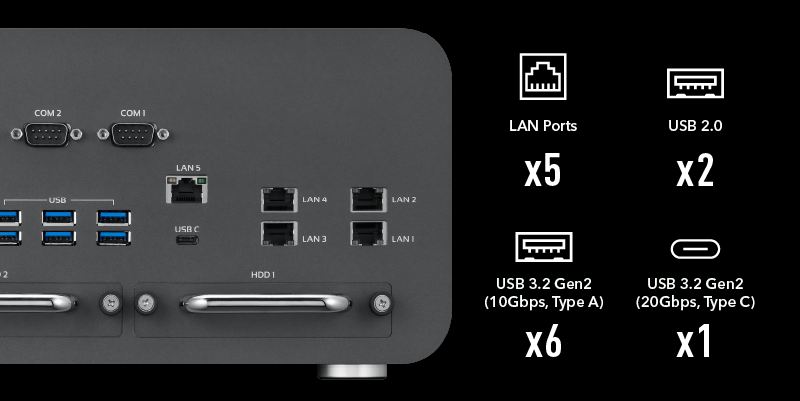

多元 I/O 扩展
5个 2.5G RJ45 LAN 接口，在大量数据传输时仍可保持稳定运行与负载均衡。
1个 USB 3.2 Gen 2 x2（20Gbps）Type-C 和 6个 USB 3.2 Gen 2 接口，数据传输更迅捷。

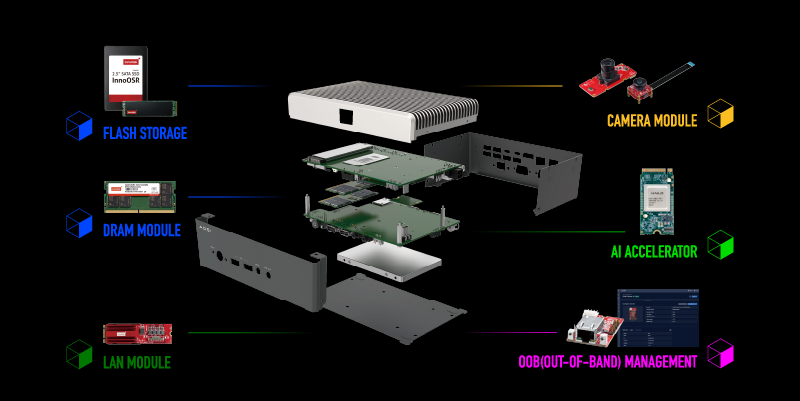

高兼容模块选择
除内置选项外，宜鼎还提供完整的工业级 SSD、DRAM 模块和嵌入式外设模块，并支持定制化选项，灵活满足客户多样化的应用需求。
优异定制化服务
宜鼎以灵活的合作模式，提供定制化 AI 系统服务。除初始内置的 AI 加速卡外，还可提供多种替代方案供客户灵活选择。此外，还可根据客户需求，提供软硬件、固件、BIOS、I/O、散热解决方案及系统设计等定制化服务。
规格表
| Platform | Intel CPU | Core i7-13700E |
| Cores (P+E+LPE) | 16C (8P + 8E) | |
| Threads | 24 | |
| Max. Frequency | 5.1GHz | |
| Cache | 24MB | |
| CPU TDP | 65W | |
| BIOS | AMI UEFI 256Mbit | |
| AI Accelerator | AI Engine | NVIDIA RTX 5000 Ada |
| Form Factor (Interface) | MXM graphics module version 3.1, Type B (PCIe Gen 4 x 16) | |
| Cores | 9,728 x NVIDIA Ada Lovelace architecture-based CUDA Cores 304 x NVIDIA fourth-generation Tensor Cores 76 x NVIDIA third-generation RT Cores | |
| GPU memory | 16GB GDDR6 (w/ECC) | |
| Memory | Technology / Socket | DDR5 5200MHz / 2 x 262pin DDR5 SO-DIMM |
| Max. Capacity | up to 64GB (2 x 16GB, total 32GB pre-installed) | |
| Graphics | Controller | Intel UHD Graphics 770 |
| Graphic Engine | Hardware encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC Hardware decode: 8K60 12b 4:2:0 HEVC/VP9/SCC; 8K30 10b 4:2:0 AV1 | |
| Displays | DP++ 1.4 (4K@60Hz) | 5 |
| Ethernet | LAN (Intel I226 2.5Gbps) | 5 |
| Expansion Slots | M.2 2280 M Key | 2 x (PCIe Gen 4 x4 / SATAIII), 512GB M.2 SSD pre-installed |
| MXM Type B / B+ | 1 x (PCIe Gen 4 x16), NVIDIA RTX 5000 Ada pre-installed | |
| External I/O | COM1 | RS232 /422 / 485 |
| COM2 | RS232 /422 / 485 | |
| COM3 | RS232 / 422 / 485 | |
| COM4 | RS232 / 422 / 485 | |
| USB 3.2 Gen 2x2 (20Gbps) Type C | 1 | |
| USB 3.2 Gen 2 (10Gbps) | 6 | |
| USB 2.0 | 2 | |
| Buttons | 1 x Power (with LED) | |
| Audio (Realtek ALC888S) | Mic-in x 1, Line-out x 1 | |
| GPIO/ DIO | 7-bit (by BIOS selection) | |
| Internal I/O | SATA | 2 x 2.5“ SATA III SSD / HDD |
| CAN Bus | 2 x CAN Bus-Isolation 2.0B (optional by MOQ) | |
| Power | Power Input Voltage | DC 24V |
| Power Consumption | [email protected] (with i7-13700E / 512GB SSD / 32GB DRAM / NVIDIA RTX 5000 Ada) | |
| Power Connector Type | 4-pin Terminal Block | |
| Environment | Operating Temperature | 0°C ~ 50°C (with NVIDIA RTX 5000 Ada) |
| Storage Temperature | -40°C ~ 85°C | |
| Operating Humidity | 5 ~ 95% Relative humidity, non-condensing | |
| Operating Vibration | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis (operation, without AI accelerator) | |
| Operating Shock | With SSD: 30 Grms, IEC 60068-2-27, half sine, 11ms duration (operation, without AI accelerator) | |
| Watchdog Timer | Interval | Programmable from 1 to 255 Seconds |
| Security | TPM 2.0 | dTPM2.0 (Hardware, Infineon:SLM9670AQ2.0) |
| Out-of-band (OOB) | 1 x InnoAgent (RJ45) | |
| Physical Characteristics | Dimension L x W x H (mm) | 280 x 270 x 148.2 |
| Net Weight / Gross Weight (KG) | 5.7 / 8 | |
| Mount | Wall Mount | |
| Operating System | Linux Ubuntu 22.04 Microsoft Windows 10 IoT Enterprise 2021 LTSC | |
| Regulation | Safety | CE / FCC |
产品料号
| 型号 | Intel CPU | NVIDIA GPU | COM 埠 | LAN 埠 | USB 埠 | SATA 埠 | 显示 输出 | 存储 | 记忆体 | M.2 插槽 | 运作温度 |
| APEX-P100-A00 | Core i7-13700E | RTX 5000 Ada | 4 | 5 | 9 | 2 | 5 | 512GB | 32GB | 2 (M) | 0°C~50°C |
